ADDITIONAL LED HEADLIGHTS FOR HONDA XL 750 TRANSALP (2023-)

HEPCO&BECKER's LED auxiliary headlights appear to be an excellent choice for improving visibility and safety on your Honda XL 750 Transalp (2023-). Here are some important features and details about these additional headlights.

Technical Specifications:

Each headlight set includes 2 high-power LEDs.

They operate on 12 V with a power consumption of 8.6 W.

They provide a light output of 770 lm per headlamp.

They are e-mark certified (no registration required).

Universal mounting:

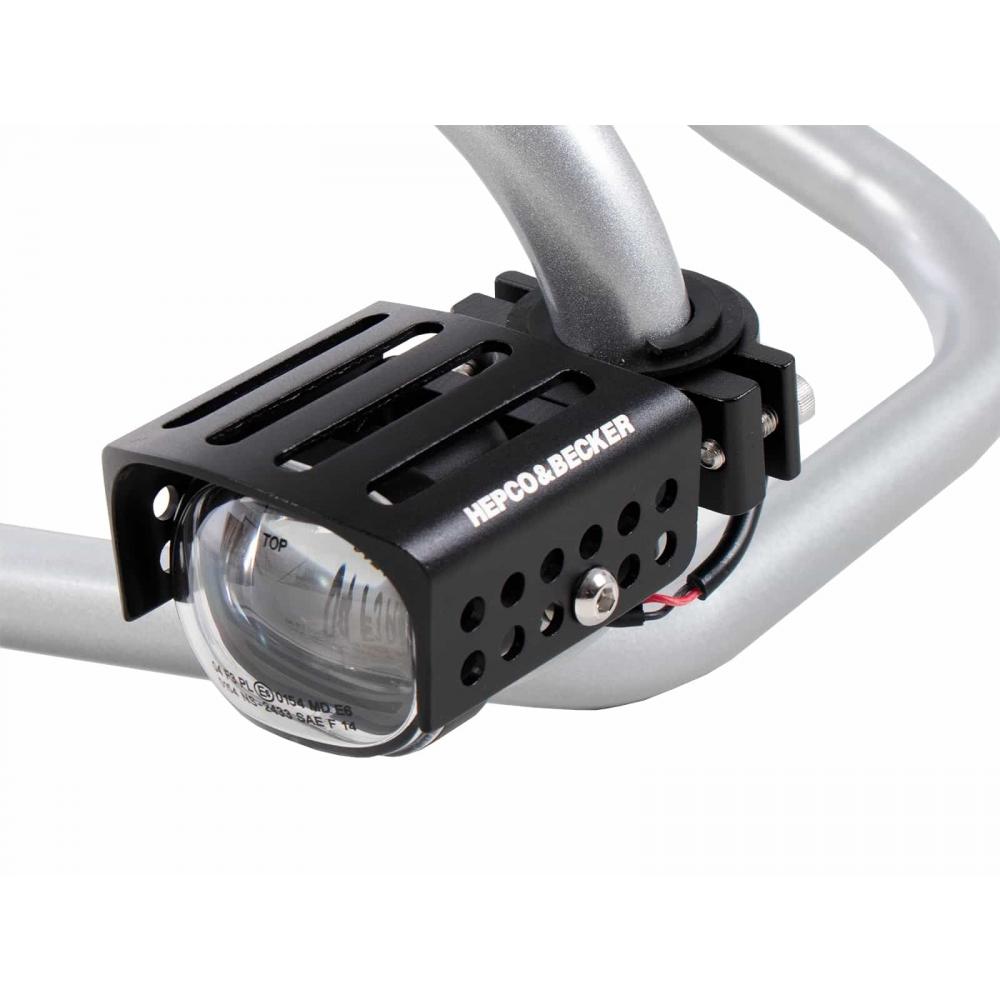

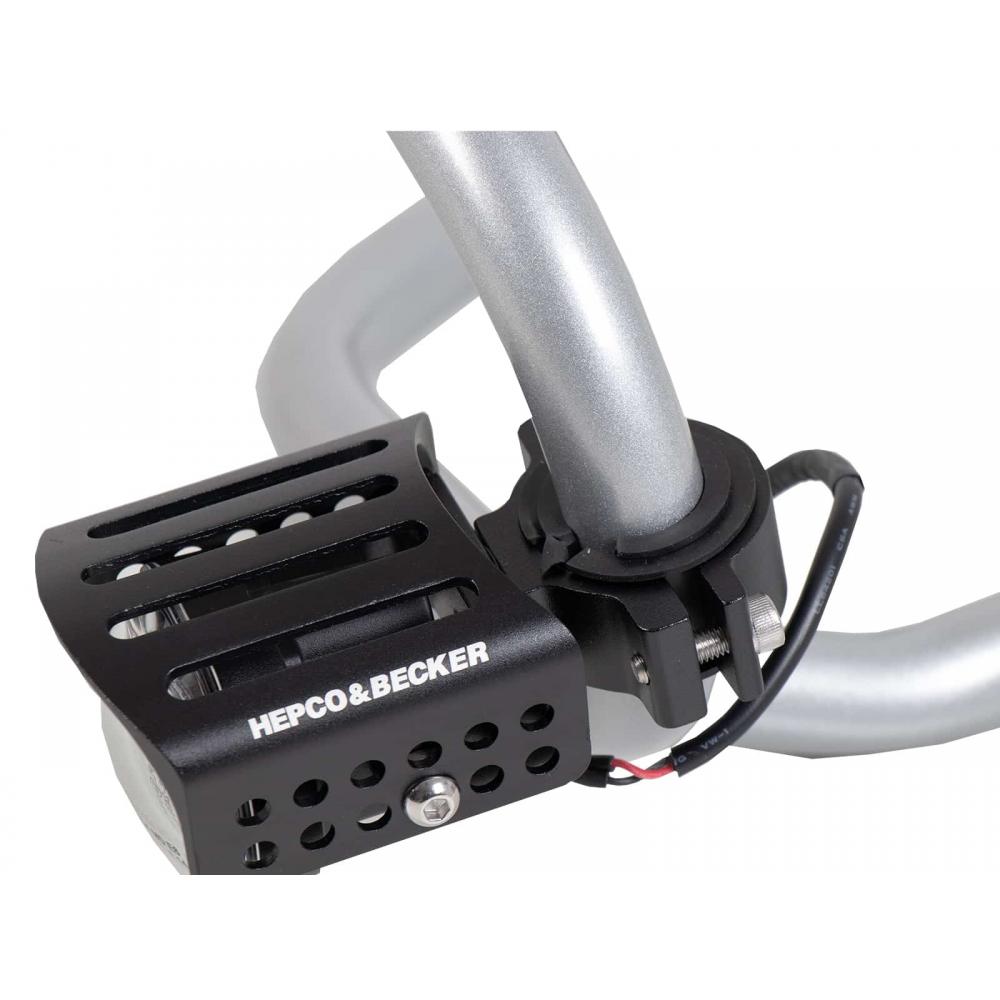

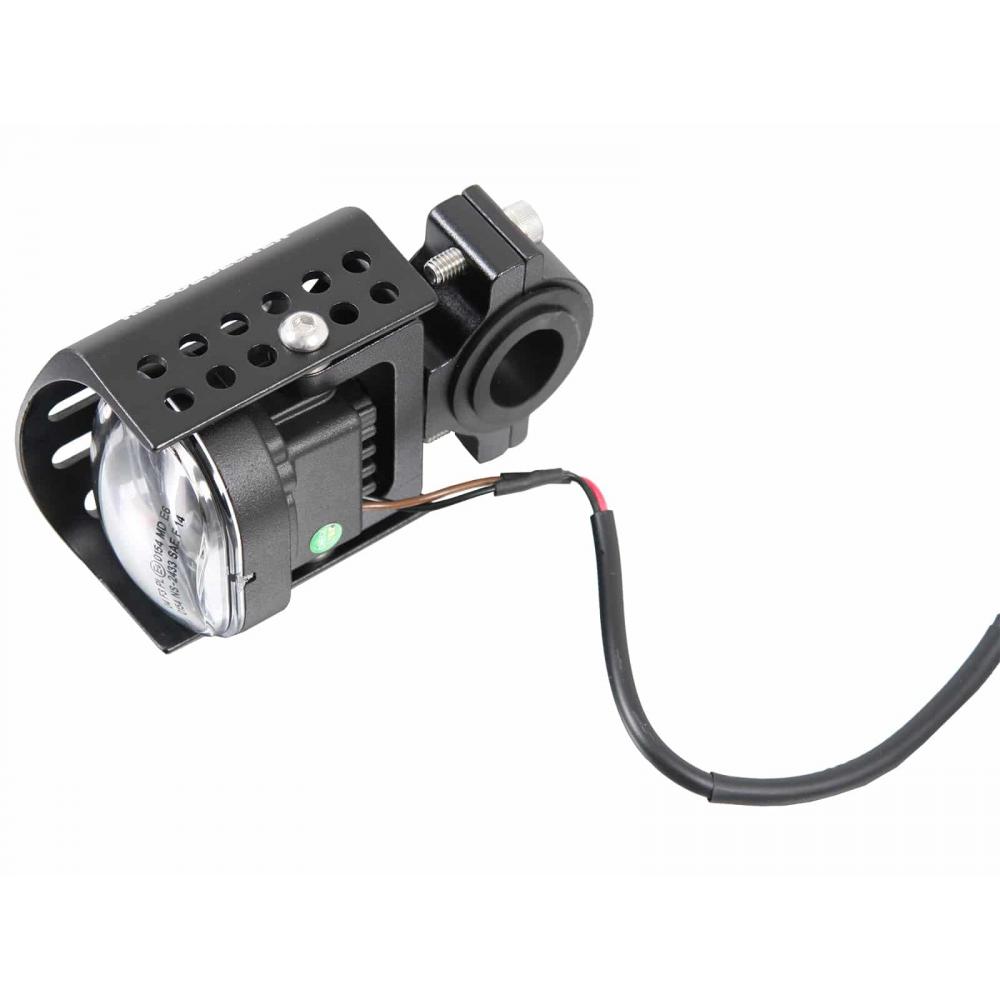

These headlights can be universally attached to existing pipes with pipe thicknesses ranging from 22 to 47 mm.

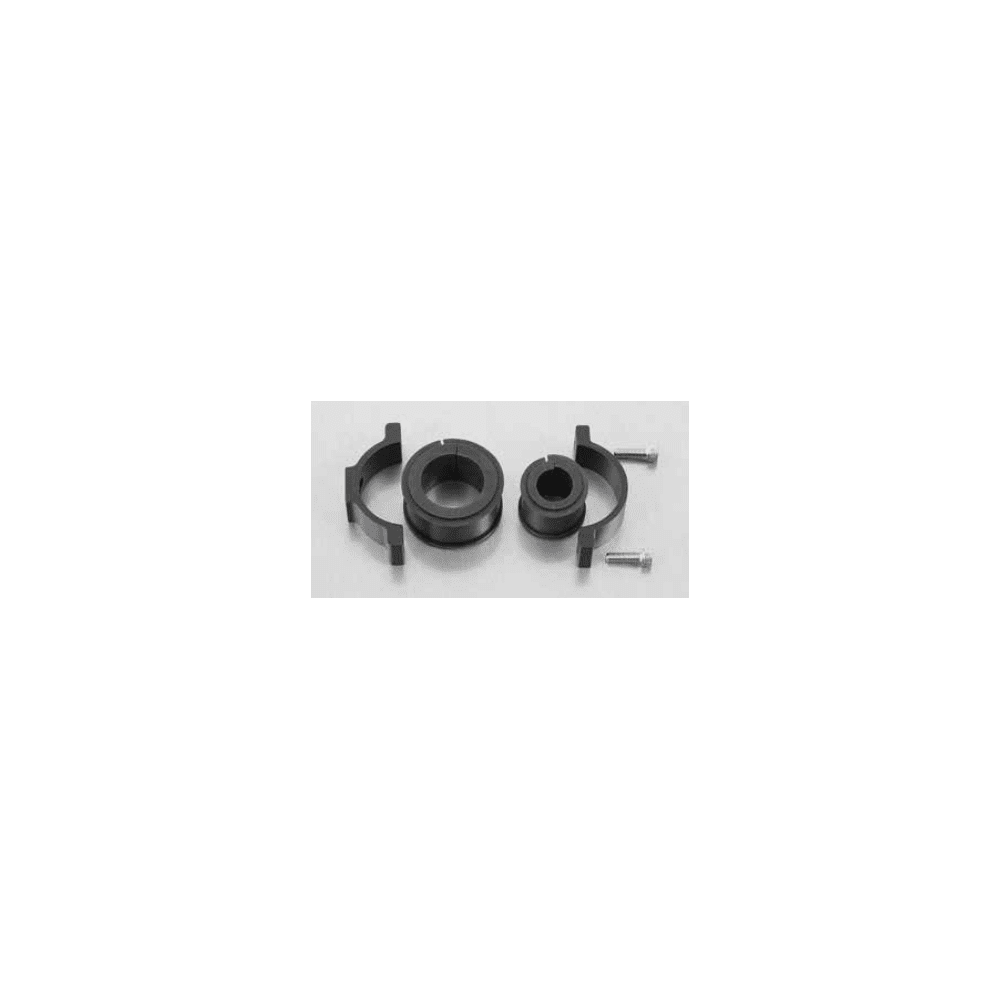

Included are 2 different pipe clamps with 4 rubber stoppers to ensure secure installation on a wide range of motorcycles.

Complete Set:

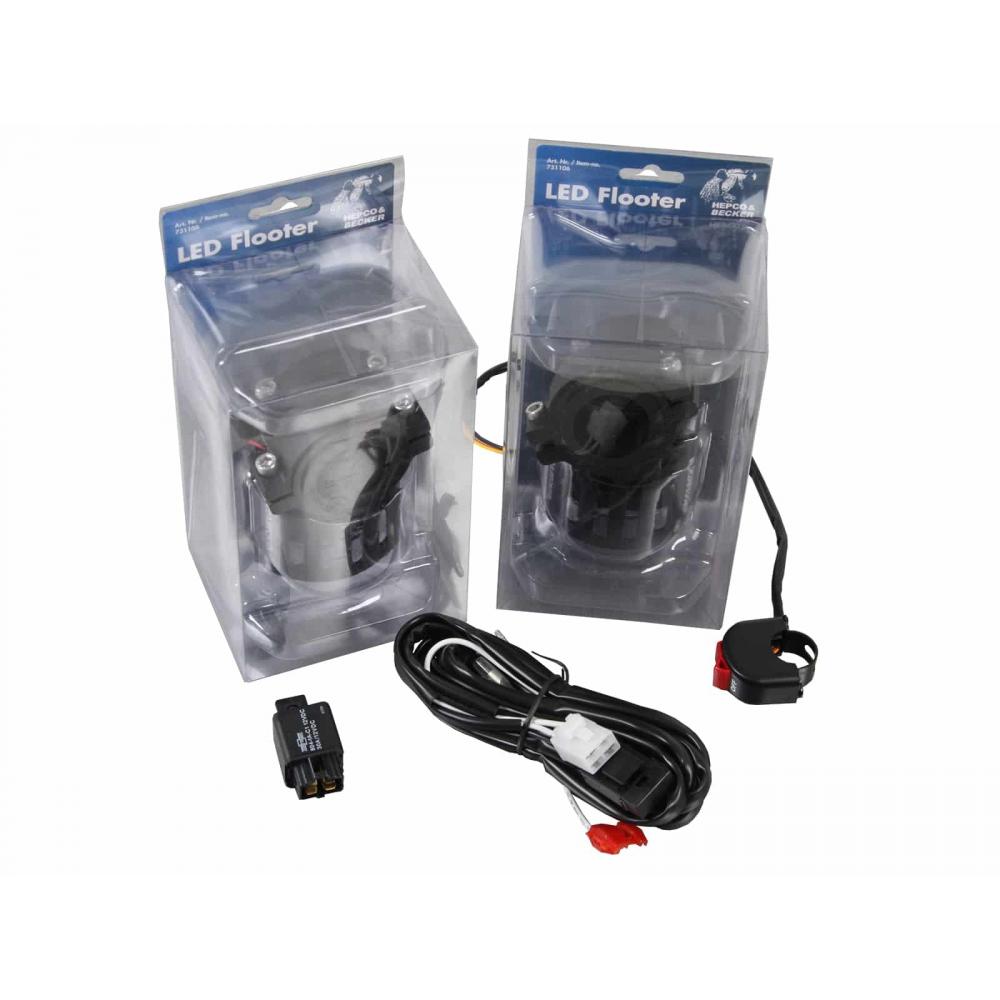

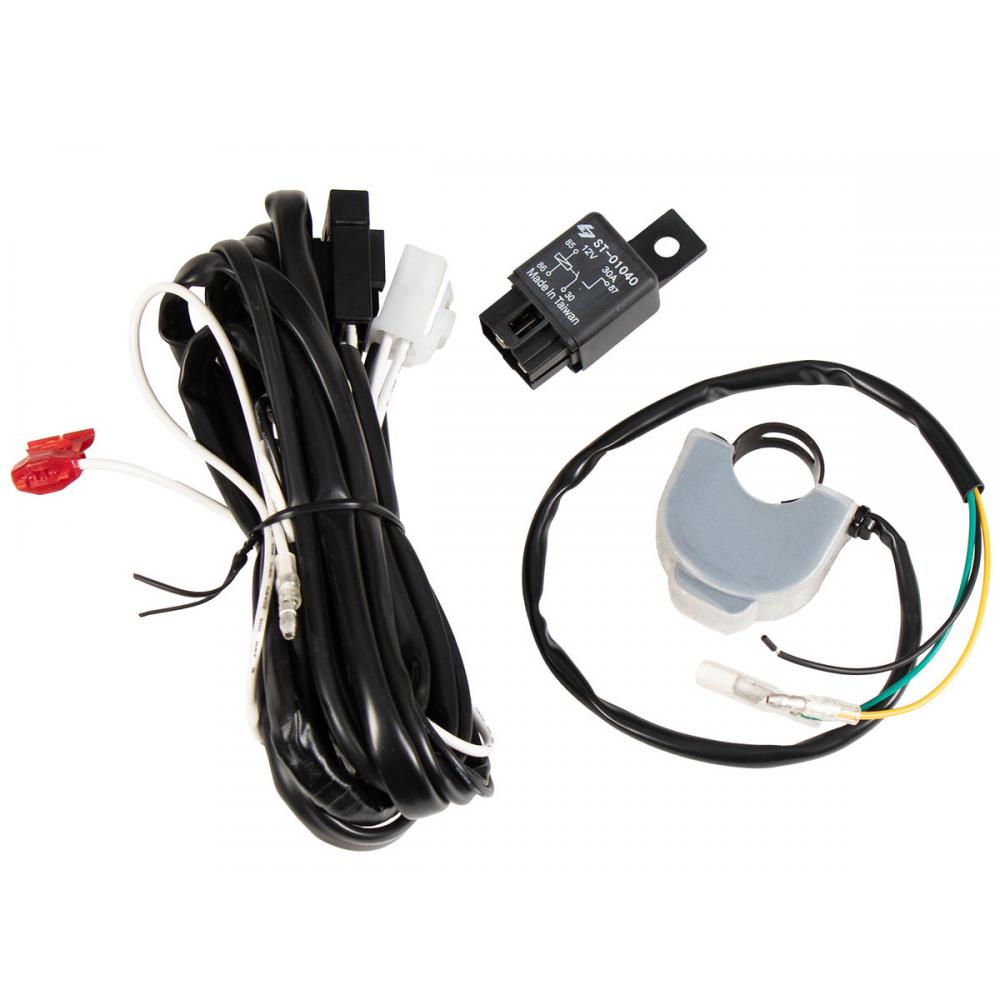

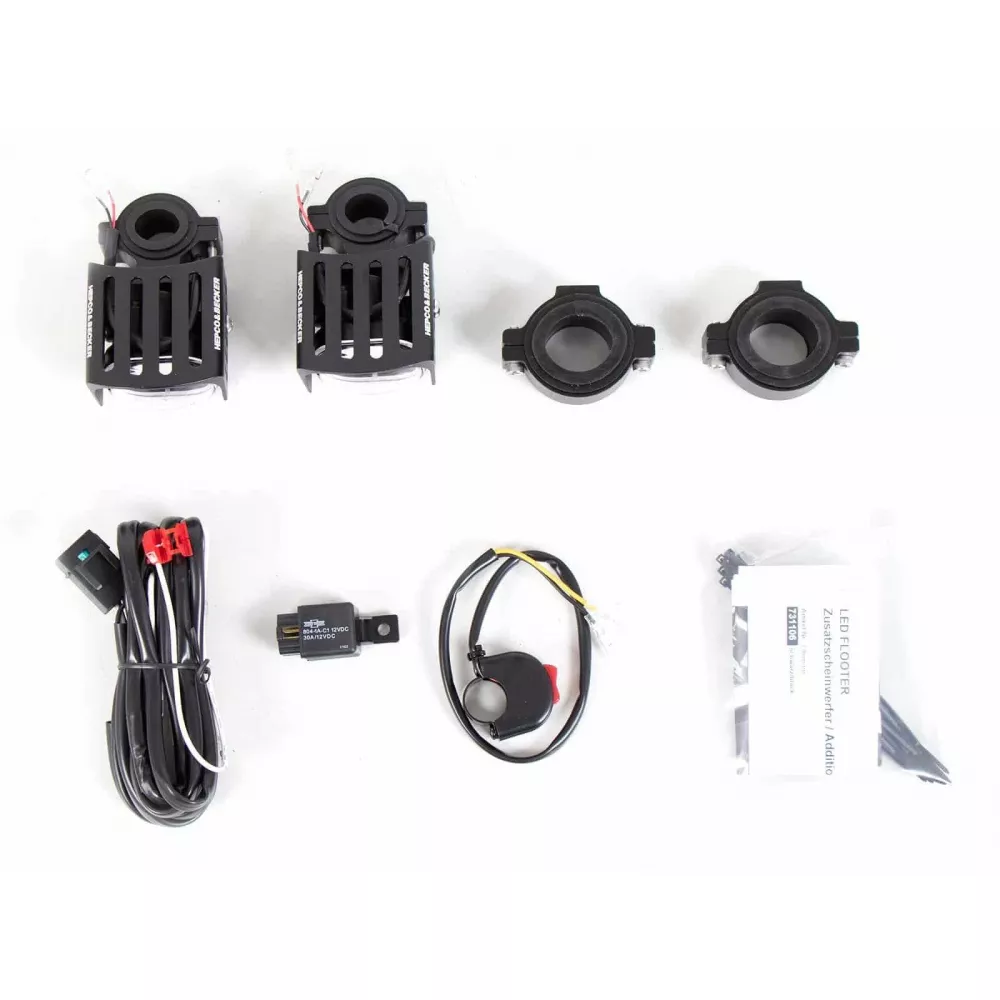

Each headlight set includes a housing, bulbs, pipe clamps, wiring harness, switch and relay.

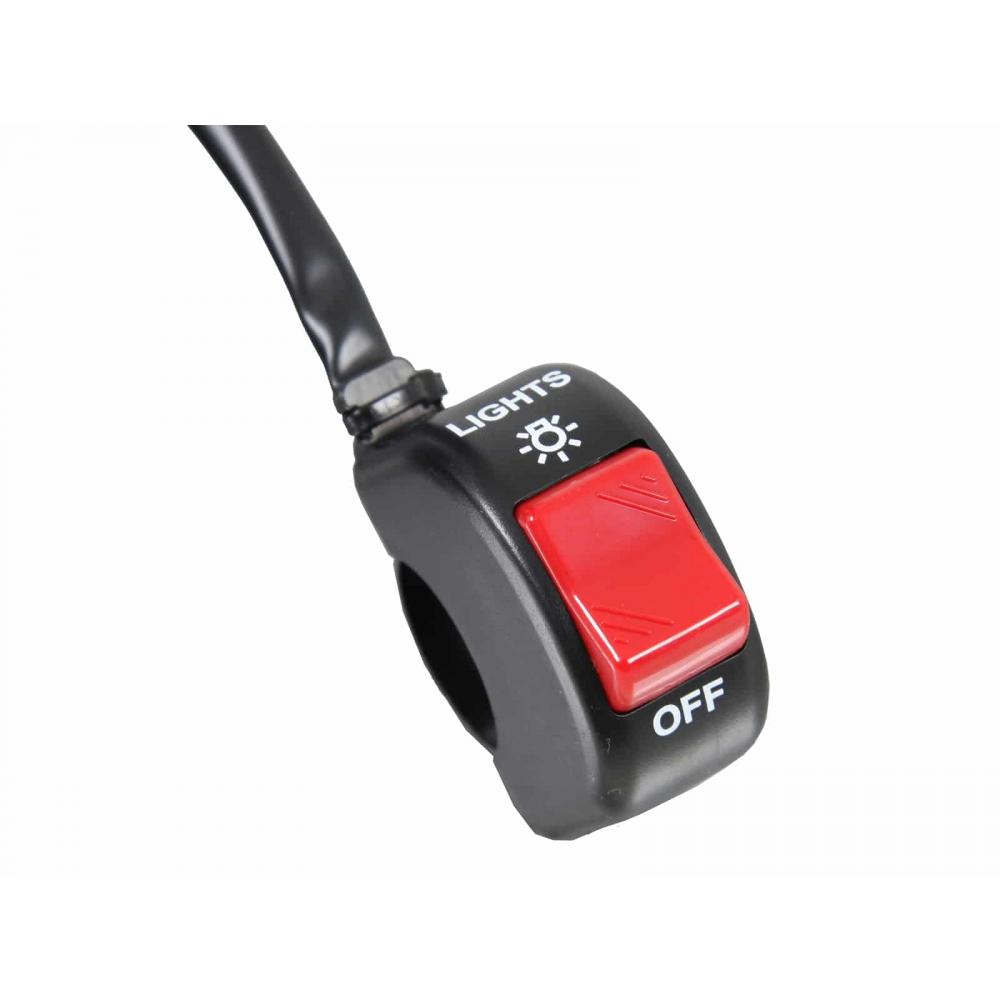

Headlights can be flexibly switched on via a handlebar mounted switch.

Regulatory Compliance:

LED auxiliary headlights comply with §50 StVZO regulations.
They can be installed no more than 250 mm from the center of the motorcycle and at a maximum height of the main headlight.

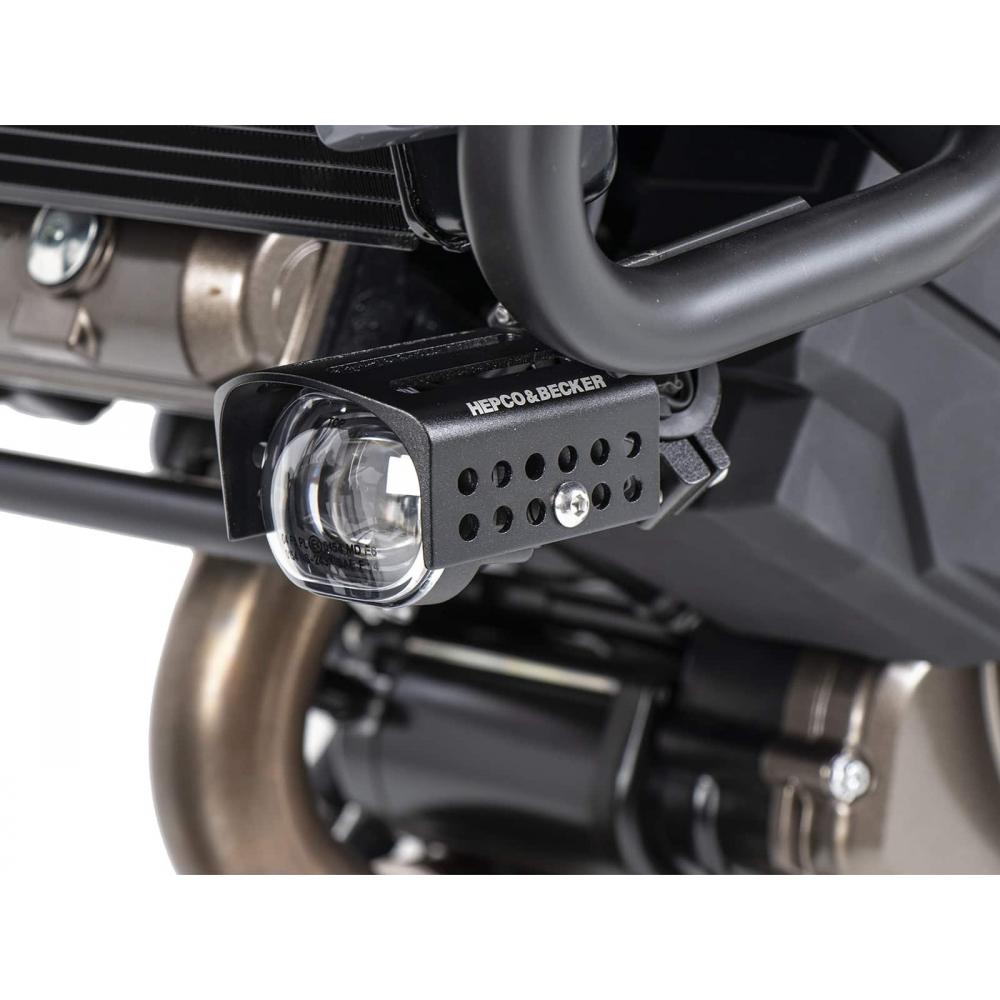

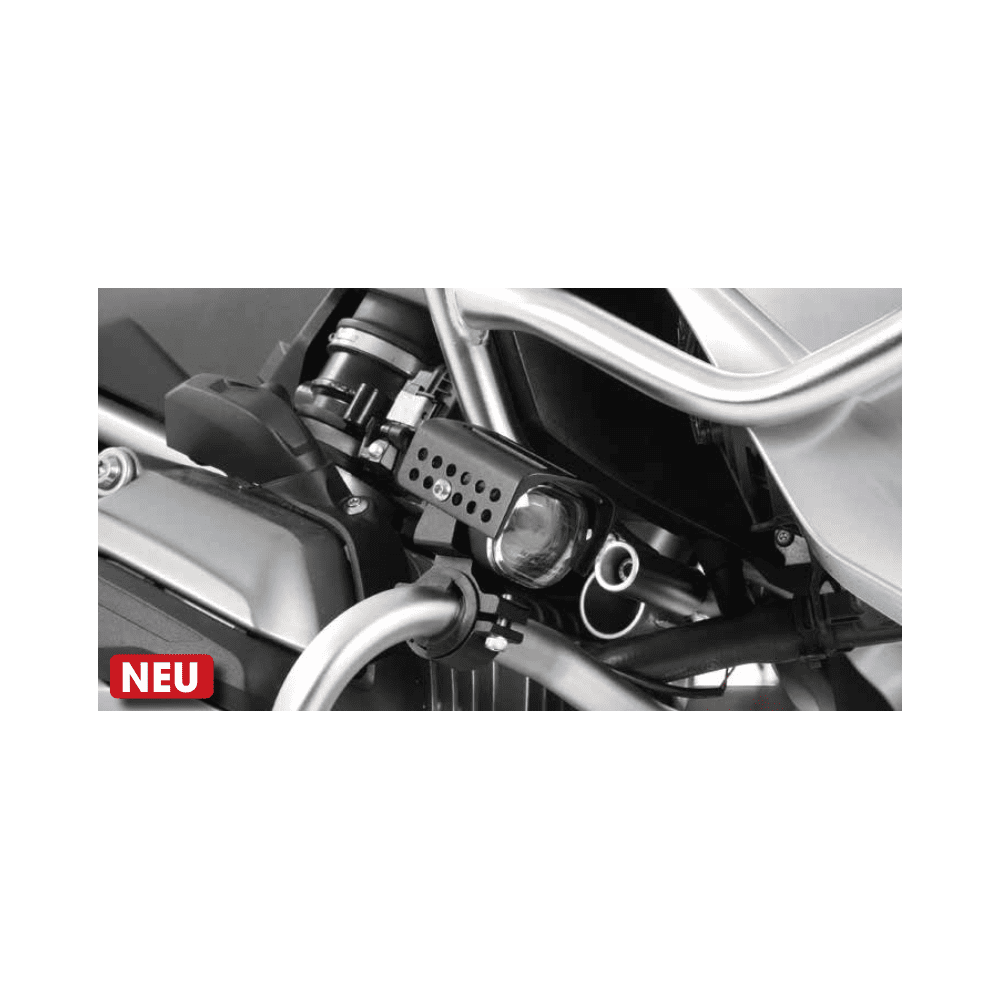

They can also be mounted on the crash bar for better illumination.
They can function as fog lights or as additional high beams.
On a motorcycle, only one additional high beam is allowed, which must be linked to the main headlight.
They can be switched as fog lights or high beams.

Installation and Adjustment:

LED auxiliary headlights come with detailed installation instructions including a circuit diagram.
They are pre-assembled and require no soldering or cutting of wires.
On/off switch is included as part of the kit.

Light Adjustment:

It is recommended to adjust the lights during a test drive in the dark to avoid dazzling other road users.
It is suggested to go to a specialized workshop to perform this adjustment properly.

These HEPCO&BECKER LED auxiliary headlights appear to be an effective solution to improve visibility and safety in low light or dark conditions. Be sure to follow the regulations and installation recommendations to ensure safe and legal use of these auxiliary lights on your Honda XL 750 Transalp (2023-) motorcycle
