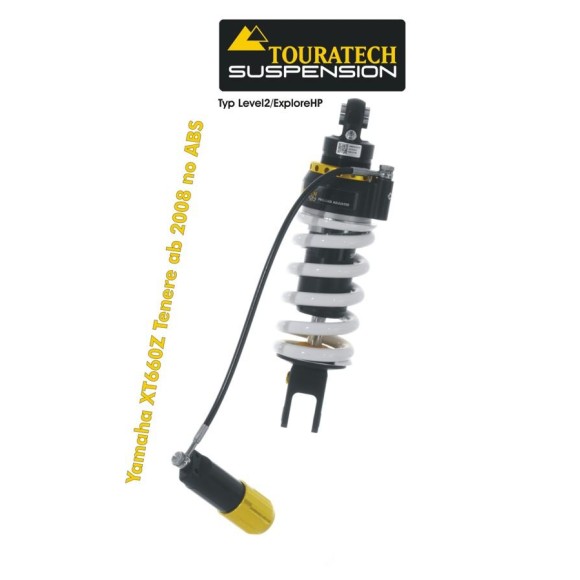

Shock absorber tube Touratech Suspension for Yamaha XT660Z Tenere (without ABS) from 2008 onwards type Level2/Explore HP

More performance and comfort for your Yamaha XT660Z Tenere with the Level2/Explore HP shock tube from Touratech Suspension. Whether for sporty riding on twisty trails or quiet routes, the wide adjustment range allows for better balance and damping tuning compared to stock components. The Level2 emulsion shock tube can be adapted to the load by means of the hydraulic spring initial tension. The rebound control allows the suspension to be precisely adjusted to the road conditions and type of driving. Regardless of whether it is highway, secondary or country roads or a sporty riding style.

The new suspension dimension for your Yamaha XT660Z Tenere.


Highlights:
=> The shock tube is set up and adjusted ready for use on the Yamaha XT660Z Tenere based on our experience.
=> The parameters are: vehicle weight / shock tube articulation / construction characteristics / test rides.
=> The shock tube mentioned here is designed for a rider weight up to 100 kg including luggage.
=> In all suspension solutions the front and rear of the motorcycle must be adjusted.



Characteristics of the Level2/Explore HP shock tube from Touratech Suspension:
=> The shock tube housing is made of aluminum.
*
** Thanks to which the weight is kept to a minimum.
=> Special low-friction seals with Teflon ring for low wear and long shock tube life.
=> Emulsion type and more responsive shock tube response.
=> Large 16 mm chrome-molybdenum steel piston rod for maximum stability and durability.
=> 38 mm shock piston with special Touratech configuration.

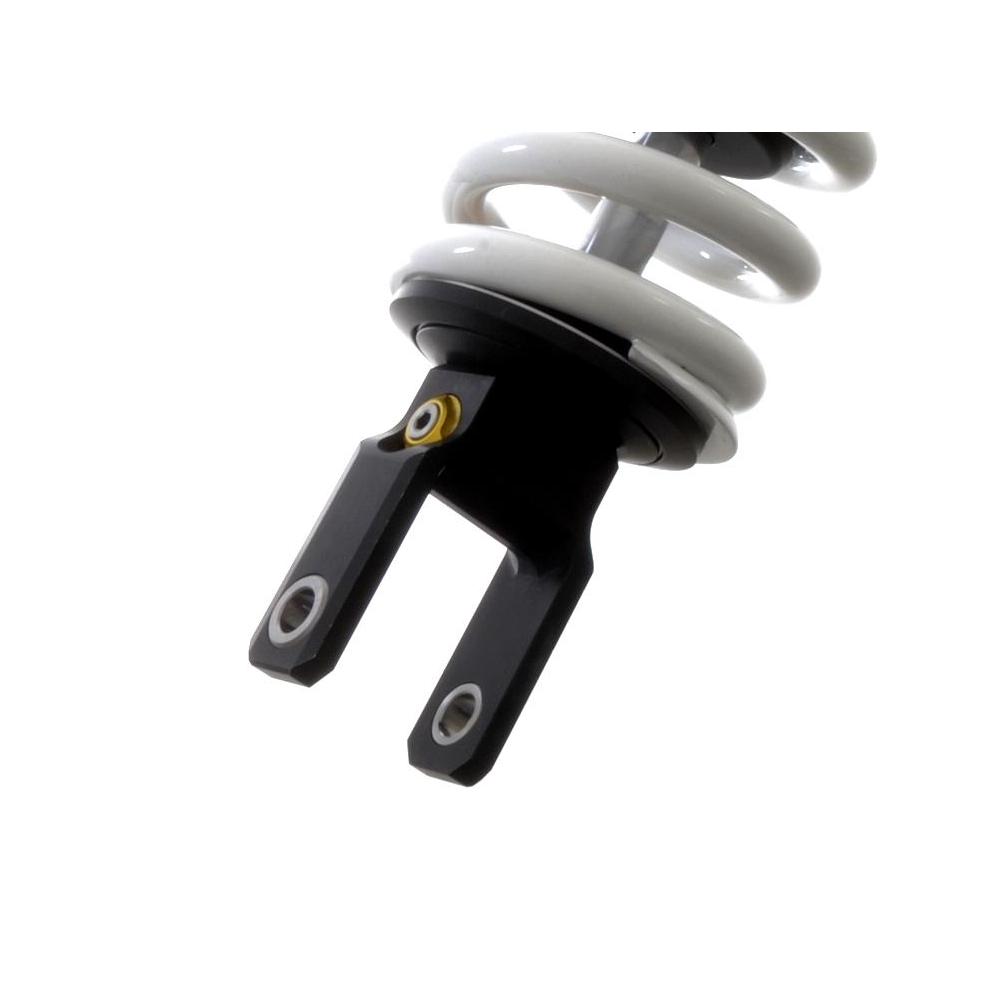

=> Heavy-duty stainless steel bushings for the set screws in the shock tube eye.
*** This results in a set screw seat with no backlash, even at maximum loads.
=> All parts and components are specified for heavy travel use.

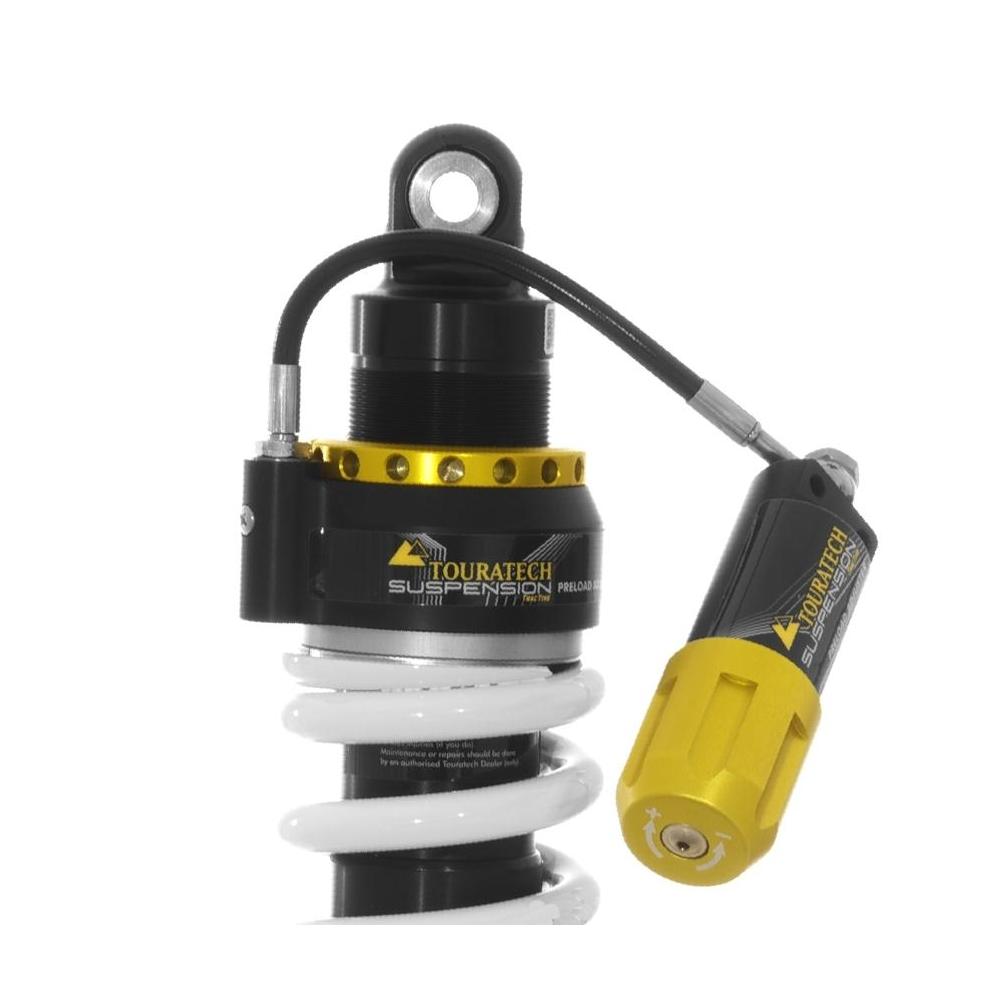

=> Highend hydraulic spring initial tension via an easily accessible thumb wheel.
=> QR code on the shock tube with shock tube specific information.
*** Allows easy retrieval of shock tube specific information by simply scanning the code with a smartphone.
*** Possibility of retrieving the basic setting of the shock tube at any time. Resetting possible in case of incorrect setting.
=> Fully serviceable. Thanks to this, the highest possible driving dynamics are permanently achieved.



The basic configuration installed here is adjusted for a driver with up to 100 kg of luggage included. Adaptations are possible in case of much higher loads or other special requirements. In this case we adapt the shock absorber tube with a higher spring hardness to your personal requirements as well as other configurations. Please use our Suspension Verification Form and send it back to us completed.

Scopeof delivery:
- Shock absorber tube ready for installation
- Approval documentation
- Installation instructions / user manual

Do you have any questions? We will be pleased to advise you personally.
