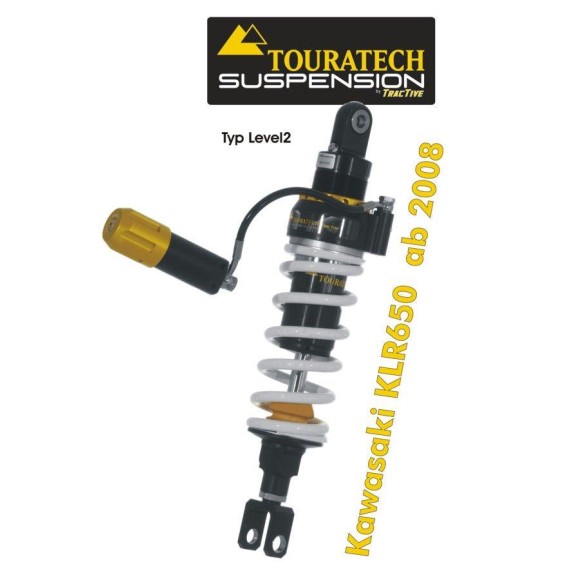

Touratech Suspension shock absorber tube for Kawasaki KLR650 2008 type Level2 / Explore HP

The level 2 shock absorber for Kawasaki KLR650 is the right choice for long distance travel and touring .This type of shock absorber offers a wide adjustment range with many reserves to meet the demands of motorcycle touring. Its floating piston design, hydraulic preload and fine damping adjustment allow a more suitable suspension setup for different load conditions than is possible with the motorcycle manufacturer's standard components. You can quicklyand easily restore the motorcycle's balance through a handwheel that adjusts the hydraulic spring preload .The setup of this level 2 shock allows the necessary degree of control over bump and rebound to adjust the shock to suit your individual riding comfort requirements.

Data at a glance:

=> This shock is set up and tuned ready to use based on our experience with the 2008 Kawasaki KLR650.
=> Parameters are: vehicle weight / shock pivot point / design constraints / test rides.
=> This shock is designed for rider weight, including luggage, up to 100 kg.
=> As with all suspension solutions, the rear and front of the motorcycle must be modified together.
=> The corresponding component for the front of the Kawasaki KLR650 is
=> Progressive replacement fork springs, for Kawasaki KLR650 Art Nr: 01-409-5838-0
If only one component is changed, optimal handling will not be achieved.



A shock absorber that makes it easy and convenient to adjust your bike for different load conditions.

Shock absorber features Touratech Suspension Level 2:

=> The body of the shock is made of aluminum.
*** This keeps its weight to a minimum.
=> Special low-friction seals are mounted.
*** As a result, there is very little wear and the shock has a long service life.
=> Heavy-duty stainless steel bushings for the fixing bolts are installed in the spring eye.
*** They ensure that the locking bolt is firmly seated without play even under maximum loads.
=> All assemblies and components are designed for intensive use on heavy touring motorcycles.
=> The shock absorber settings were developed according to the experience and requirements of Touratech.
*** They are based on many kilometers ridden and experiences gained with the use of the Touratech Race Team.
=> Floating piston design .The floating piston separates the damping fluids, oil and nitrogen, allowing them to work separately.
*** Finer shock response.
*** Precise and high performance damping even at very high damping frequency (bad roads, dirt tracks).
*** The shock cools better.
*** Minimum restrictions for the mounting position of the shock absorber on the motorcycle.
=> High-end hydraulic preload via a well-placed and easily accessible handwheel.
=> QR barcode on the shock contains individual shock data.
*** Simply scan with a smart phone to access shock-specific information.
*** Information about the factory setting of the shock is always available .It can be reset if it is set incorrectly.
