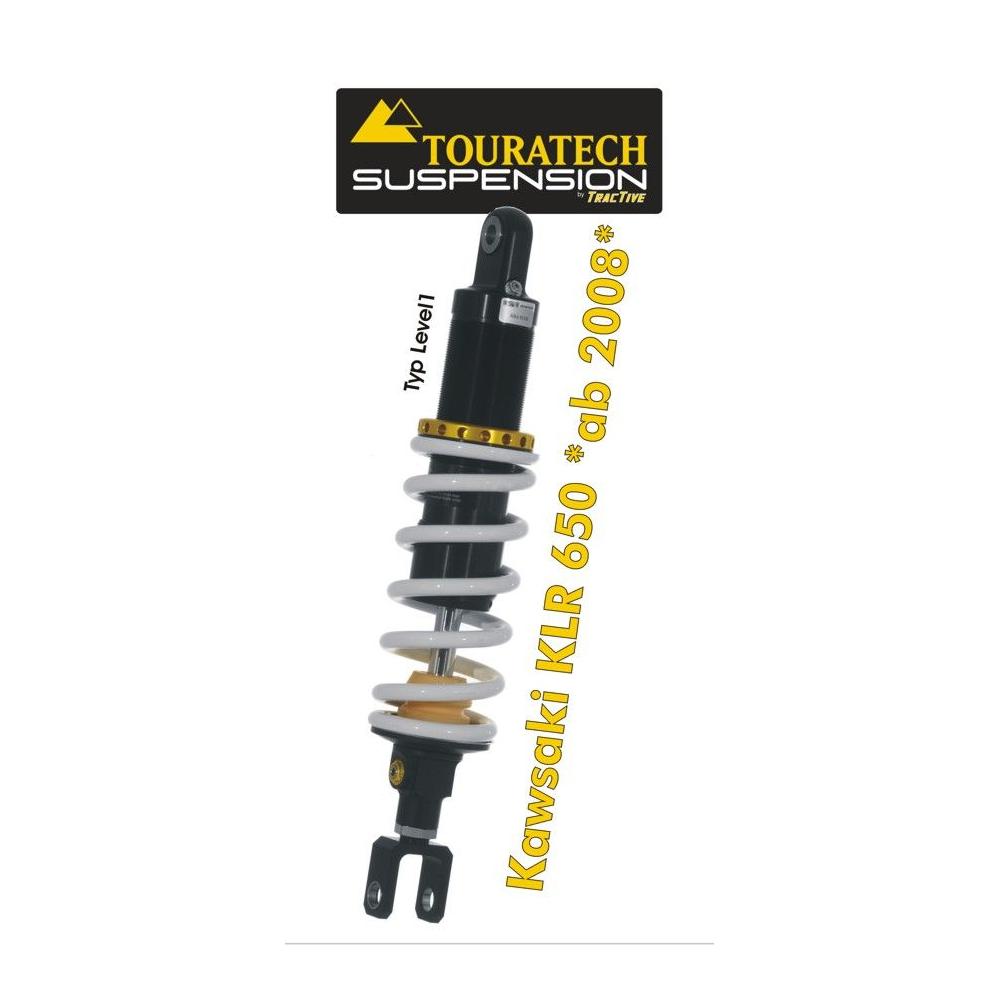

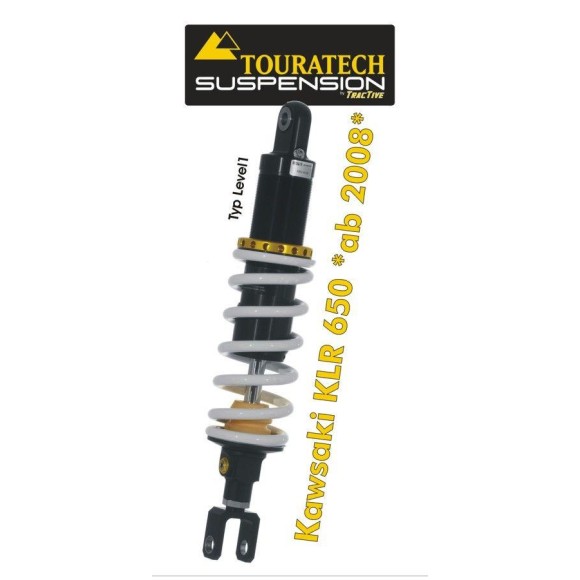

Shock absorber Touratech Suspension for 2008 Kawasaki KLR650 type Level1 / Explore

This shock absorber is the right choice for the Kawasaki KLR650 touring n ormal. The shock absorber type offers a wide adjustment range and high reserves for the demands of motorcycle touring. The spacer piston design and finely adjustable damping allow for more precise tuning and balancing than is possible with motorcycle manufacturers' stock components. Spring preload can be adjusted with an adjustment tool to accommodate the load on large luggage. The damping adjustment of this level 1 shock allows the necessary influence on the rebound and compression stages to implement your individual ride comfort requirements on the shock.


Important in summary:
=> The shock is set up based on our experience for the Kawasaki KLR650 and is ready to ride.
=> The parameters are: vehicle weight / shock articulation / structural conditions / test ride.
=> The shock absorber mentioned here is designed for a rider weight up to 100 kg including luggage.
=> The rear and front of the motorcycle must be adapted to all suspension solutions.
=> The suitable component for the front of the Kawasaki KLR650 is:
=> Progressive fork springs for Kawasaki KLR650 Art No.: 01-409-5838-0
=>If only one component is changed, optimalhandling isnot achieved .

The equipment installed here with its adjustment options is sufficient if the chassis rarely needs to be adjusted to different load conditions.

Shock absorber properties Touratech Suspension Level1:
=> The shock absorberhousing is made of aluminum.
*** This results in the lowest possible weight.
=> Special low-friction seals are installed.
*** This means very little wear and a long service life of the shock absorber.
=> Stable stainless steel sockets for the fastening bolts are integrated in the strut eye.
*** This results in a more stable seat and no set screw play, even under the highest loads.
=> All parts and components are designed for intensive use with heavy touring motorcycles.
=> The shock absorber settings were developed based on the experience and requirements of Touratech.
*** The basis is many kilometers ridden and the experience gained in the operations of the Touratech Race Team.
=> Spreader piston design .This allows the damping fluids oil and nitrogen to work separately.
*** Finer shock absorber response.
*** High and precise damping performance even at very high damping frequency (bad roads, slopes).
*** Improved shock absorber cooling.
*** Minimal restrictions on the installation position of the shock absorber on the motorcycle.
=> QR barcode on the shock absorber with individual shock absorber information.
*** This makes it easy to retrieve strut-specific information by scanning it with the smartphone.
*** Information on the basic setting of the shock absorber is always available .Resetting possible with incorrect settings.



The basic setting installed here is suitable for drivers up to 100 kg including luggage .Adjustments are possible
for higher passenger weight (over 100 kg) and / or for predominantly passenger / luggage use
. Wethen individually adapt the shock absorber to your
needs by using a spring with a higher spring rate . Please use our landing gear check sheet and send us thecompleted
form.

Do you have any further questions? We will be happy to advise you personally, please contact us
